Outlining

Overview

Outlining improves decompilation quality by recognizing patterns of low-level memory operations and transforming them into semantically equivalent high-level function calls. This feature automatically converts sequences of individual memory operations into cleaner, more readable calls to standard library functions like memcpy, memset, and strcpy.

How It Works

Outlining operates during the translation from Medium Level IL (MLIL) to High Level IL (HLIL). The system identifies patterns of related memory operations and replaces them with appropriate builtin function calls.

Pattern Recognition: Binary Ninja analyzes sequences of memory operations, tracking data flow and identifying common algorithms even when operations appear out of order or are interleaved with unrelated code.

Transformation: Recognized patterns are replaced with calls to synthetic builtin functions that provide cleaner, more semantic representations of the original operations.

Enabling Outlining

Settings

  • analysis.outlining.builtins: Enable outlining of constant expression compiler emitted builtins (default: true)

Controlling Outlining

The analysis.outlining.builtins setting controls outlining behavior and can be configured at multiple scopes:

  • User/Project Scope: Apply outlining preferences globally across all files or within a project
  • Resource Scope (BinaryView): Configure outlining for an entire binary
  • Resource Scope (Function): Control outlining for individual functions

Per-Function Control: Use the Quick Settings menu (right-click in any function view → Quick Settings) to quickly toggle outlining for specific functions. Add analysis.outlining.builtins to Quick Settings via the Settings UI for easy access.

For programmatic control, use the Settings API. For more information on settings scopes and configuration, see the Settings documentation.

Supported Builtin Functions

Binary Ninja currently supports outlining for the following memory and string operations:

Builtin Function Category Status Description
__builtin_memcpy Memory ✓ Supported Standard memory copy operations
__builtin_memmove Memory ✓ Supported Copy operations with overlap handling
__builtin_memset Memory ✓ Supported Fill memory with a specific byte value
__builtin_strcpy String ✓ Supported Null-terminated string copy
__builtin_strncpy String ✓ Supported Length-limited string copy
__builtin_wcscpy Wide Char ✓ Supported Wide character string copy (null-terminated)
__builtin_wcsncpy Wide Char ✓ Supported Length-limited wide character copy
__builtin_wmemcpy Wide Char ✓ Supported Wide character memory copy (with trailing data)
__builtin_strcat String ⚠ Future String concatenation (in development)
__builtin_strncat String ⚠ Future Length-limited string concatenation
__builtin_strlen String ⚠ Future String length calculation
__builtin_memcmp Memory ⚠ Future Memory comparison
Others... — 💡 Request Have a function you'd like to see? Let us know!

Note: Functions marked as "Future" are planned or in development but not yet available in production releases.

Architecture-Specific Intrinsics

Binary Ninja architecture plugins can map specialized instructions directly to well-known intrinsic names that the outliner recognizes. This enables automatic outlining of architecture-specific memory operations.

How It Works

Architecture plugins implement instruction lifting to IL using intrinsics. The outliner then recognizes these intrinsic names and transforms them into builtin function calls. Here's the flow:

  1. Architecture Lifting: Specialized instructions are lifted to IL intrinsics with standardized names
  2. Intrinsic Recognition: The outliner detects recognized intrinsic names (__memcpy, __memfill, etc.)
  3. Builtin Transformation: The intrinsic is replaced with an appropriate builtin function call
  4. Parameter Adjustment: Count parameters are adjusted based on element width

Example: x86 REP Instructions

The x86 architecture plugin (api/arch/x86/arch_x86_intrinsics.cpp) maps REP-prefixed string instructions to intrinsics:

// In GetIntrinsicName():
case INTRINSIC_XED_IFORM_REP_MOVSB:
    return "__memcpy_u8";
case INTRINSIC_XED_IFORM_REP_MOVSW:
    return "__memcpy_u16";
case INTRINSIC_XED_IFORM_REP_MOVSD:
    return "__memcpy_u32";
case INTRINSIC_XED_IFORM_REP_MOVSQ:
    return "__memcpy_u64";

case INTRINSIC_XED_IFORM_REP_STOSB:
    return "__memfill_u8";
case INTRINSIC_XED_IFORM_REP_STOSW:
    return "__memfill_u16";
case INTRINSIC_XED_IFORM_REP_STOSD:
    return "__memfill_u32";
case INTRINSIC_XED_IFORM_REP_STOSQ:
    return "__memfill_u64";

During IL generation (api/arch/x86/il.cpp), these instructions are lifted as intrinsics:

il.AddInstruction(il.Intrinsic(
    vector<RegisterOrFlag> {
        RegisterOrFlag::Register(dstReg),
        RegisterOrFlag::Register(srcReg),
        RegisterOrFlag::Register(GetCountRegister(addrSize))
    },
    intrinsic,
    vector<ExprId> { dstExpr, srcExpr, countExpr }
));

The outliner then recognizes the intrinsic name and transforms it into the appropriate builtin call.

Recognized Intrinsic Names

Memory Copy Intrinsics: - __memcpy → memcpy, strcpy, or strncpy (based on data classification) - __memcpy_u8 → memcpy (byte-wise, count unchanged) - __memcpy_u16 → memcpy (16-bit elements, count × 2) - __memcpy_u32 → memcpy (32-bit elements, count × 4) - __memcpy_u64 → memcpy (64-bit elements, count × 8)

Memory Fill Intrinsics: - __memfill → memset - __memfill_u8 → memset (byte-wise, count unchanged) - __memfill_u16 → memset (16-bit elements, count × 2) - __memfill_u32 → memset (32-bit elements, count × 4) - __memfill_u64 → memset (64-bit elements, count × 8)

Width-Specific Parameter Adjustment: For width-specific intrinsics (u16, u32, u64), the count parameter is automatically adjusted by left-shifting (1, 2, or 3 bits) to convert element counts to byte counts.

Example Transformations

Before and After

Binary Ninja's outlining transforms code at multiple levels of abstraction. What starts as a series of individual memory operations becomes a clear, semantic function call:

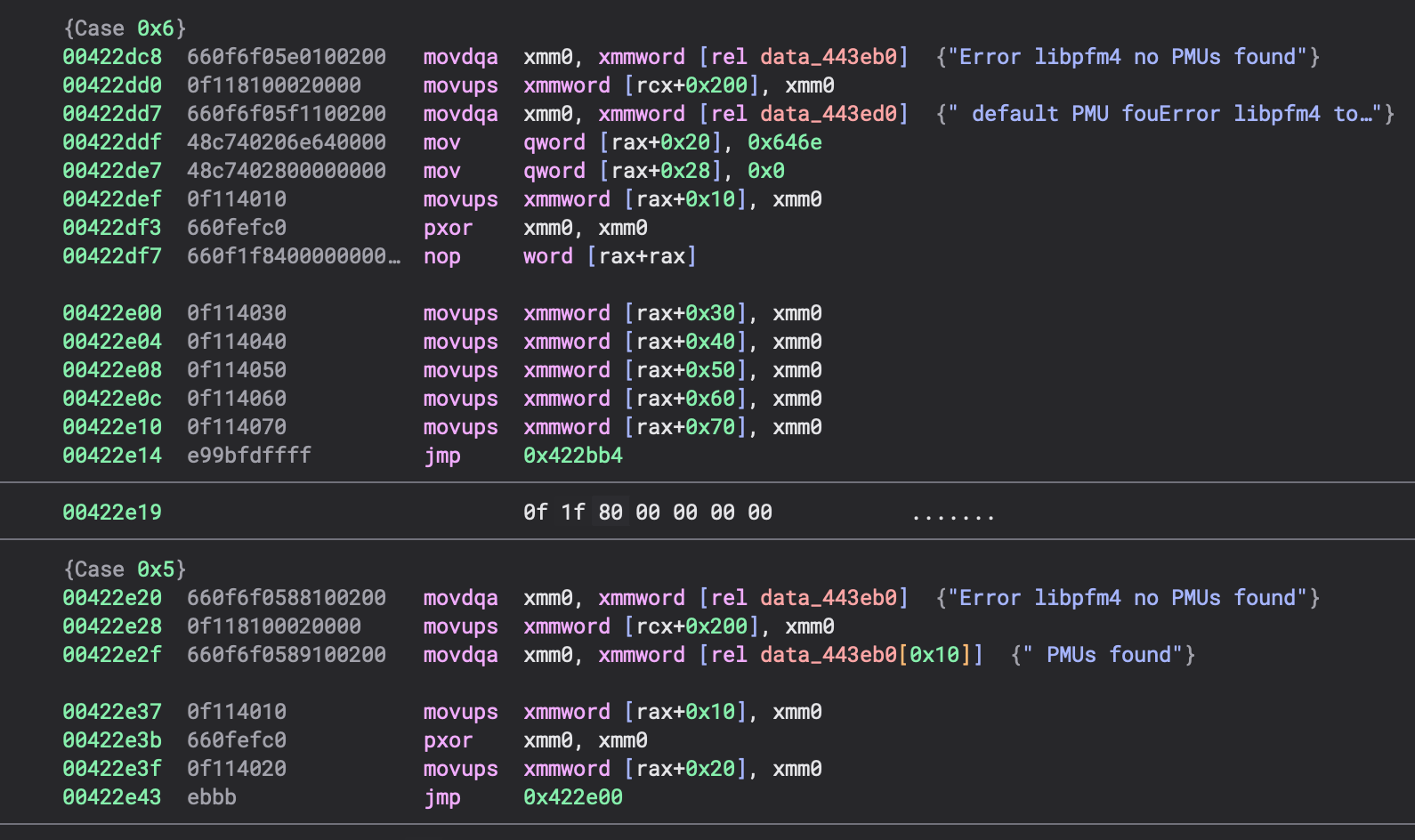

Assembly View (Before):

The raw assembly shows a sequence of individual memory operations that must be mentally reconstructed into a higher-level pattern.

Assembly code before outlining

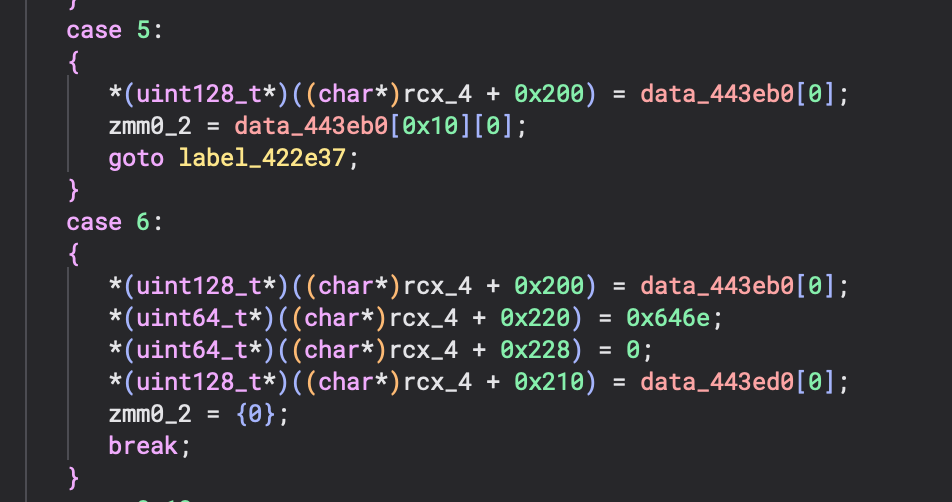

Pseudo-C View (Before):

Even in pseudo-C, without outlining, the operations remain as individual memory accesses that obscure the programmer's intent.

HLIL code before outlining

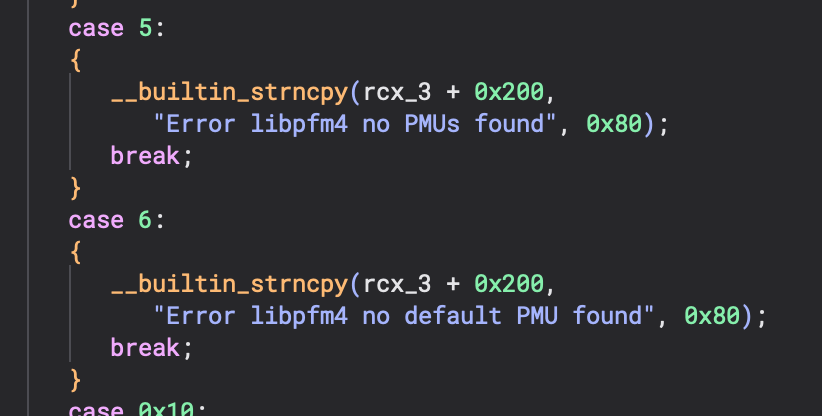

Pseudo-C View (After):

After outlining, Binary Ninja transforms these operations into a single strncpy call with appropriate parameters, instantly revealing the code's purpose.

Decompiled code after outlining

This transformation dramatically reduces cognitive load during analysis, letting you focus on understanding program logic rather than reconstructing common operations.

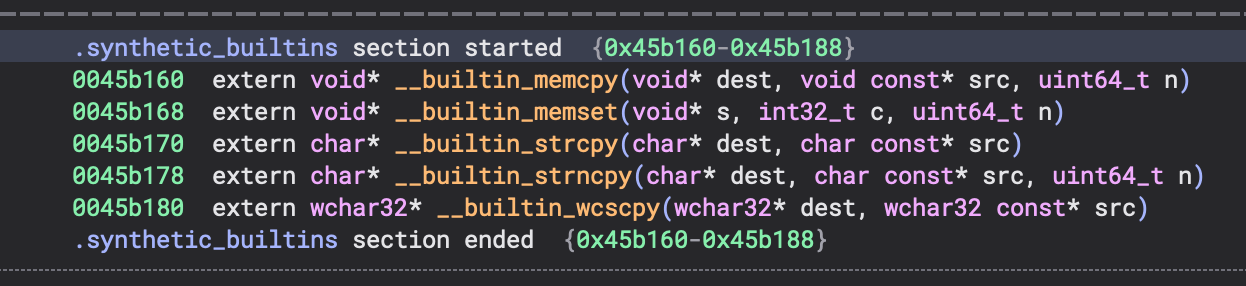

Synthetic Builtins Section

Binary Ninja creates a special .synthetic_builtins section containing properly typed function symbols for all outlined operations.

Synthetic builtins section

This provides:

  • Proper function signatures for all builtin operations
  • Enhanced cross-references showing semantic function calls
  • Type information for better analysis and navigation
  • Coherent call graph connecting outlined operations

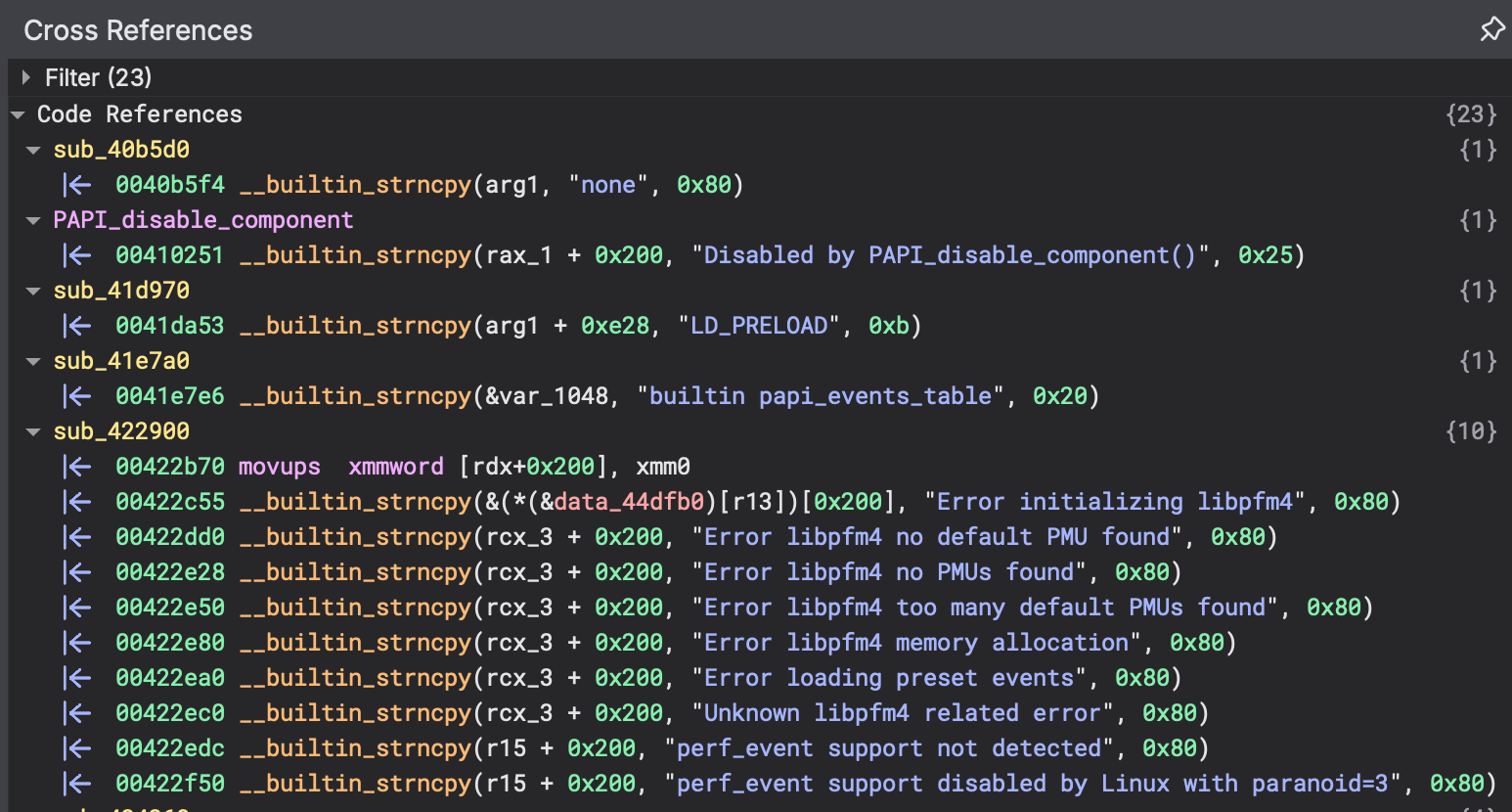

Enhanced Cross-References:

Memory operations that were previously disconnected now show up as cross-references to semantic function calls, creating a coherent call graph.

Cross-references to outlined functions

Type System Integration

Type-Guided Outlining

Type information significantly improves outlining quality:

  • Pointer types determine whether operations are treated as string, wide character, or general memory operations
  • Character types (char, wchar_t) suggest string operations over memory operations
  • char* → strcpy or strncpy
  • wchar_t* → wcscpy (for null-terminated strings) or wmemcpy (for buffers)
  • Array element types affect size calculations and operation selection
  • Structure types help identify field-wise initialization patterns
  • Platform context affects wide character width (Windows=2 bytes, Unix-like=4 bytes)

Improving Outlining Results

Provide accurate type information to enhance outlining:

# Set variable types to guide outlining decisions
var.type = types.Type.array(types.Type.char(), 16)

# Define structures for better field initialization recognition
struct_type = types.Type.structure([
    types.StructureMember(types.Type.char(), "name", 0),
    types.StructureMember(types.Type.int(4), "value", 16)
])

Data Stream Classification

The outliner classifies memory operations based on data patterns:

Stream Type Description Typical Result
DataStreamZeros Stream of zero bytes memset(ptr, 0, size)
DataStreamOnes Stream of 0xFF bytes memset(ptr, 0xFF, size)
DataStreamFill Stream of identical bytes (not 0x00/0xFF) memset(ptr, value, size)
DataStreamAscii ASCII text patterns strcpy or string operations
DataStreamUtf8 UTF-8 encoded text strcpy or memcpy
DataStreamUtf16 UTF-16 null-terminated text wcscpy (platform-dependent)
DataStreamUtf32 UTF-32 null-terminated text wcscpy (platform-dependent)
DataStreamUtf16Buffer UTF-16 with trailing data wmemcpy
DataStreamUtf32Buffer UTF-32 with trailing data wmemcpy
DataStreamStrcpy Null-terminated strings strcpy variants
DataStreamStrncpy Fixed-length string operations strncpy

Note on Wide Characters: The choice between wcscpy and memcpy for UTF-16/UTF-32 depends on the platform's wide character width. On Windows (2 bytes), UTF-16 maps to wcscpy. On Unix-like systems (4 bytes), UTF-32 maps to wcscpy. Mismatched widths fall back to memcpy.

Key Use Cases

Outlining is valuable across many analysis domains including reverse engineering, malware analysis, and firmware analysis:

  • Cleaner decompilation - Transforms low-level operations into readable function calls
  • Pattern recognition - Identifies common algorithms obscured by compiler optimizations
  • String extraction - Reveals string initialization patterns, even in obfuscated code
  • Data structure analysis - Shows initialization of complex data structures
  • Cross-reference analysis - Creates semantic connections between related operations
  • Memory operation identification - Recognizes standard library patterns in bootloaders, drivers, and protocols
  • Algorithm recognition - Identifies standard algorithms despite optimization or obfuscation

Troubleshooting

Common Issues

Patterns not being outlined: - Check if analysis.outlining.builtins is enabled - Verify type information supports the expected operation - Ensure patterns meet minimum size thresholds (see below)

Incorrect function selection: - Provide more precise type information - Check data stream classification - Verify pattern clarity and confidence

Size Thresholds and Filtering

Binary Ninja applies size-based filtering to avoid outlining trivial operations. Understanding these thresholds can help explain why certain patterns aren't outlined:

Without Type Information (no user-provided types with full confidence): - General memory operations: Must be >16 bytes - String operations: Must be ≥4 bytes - ASCII patterns: Must be ≥4 bytes - Fill patterns (memset): Must be ≥16 bytes

With Type Information (user-provided types with full confidence): - Size thresholds are relaxed - Type compatibility checks take priority - Operations matching type boundaries are more likely to be outlined

String-Specific Requirements: - String must have at least 4 printable characters before null terminator - Very short strings (1-3 bytes) are often demoted to general memory operations

Examples:

// Likely NOT outlined (too small, no type info)
buffer[0] = 'A';
buffer[1] = 'B';
buffer[2] = 0;

// Likely outlined (meets 4-byte minimum)
buffer[0] = 'H';
buffer[1] = 'e';
buffer[2] = 'l';
buffer[3] = 'l';
buffer[4] = 'o';
buffer[5] = 0;  // strcpy(buffer, "Hello")

Tip: To outline smaller operations, provide explicit type information with full confidence (user-specified types).
